Description

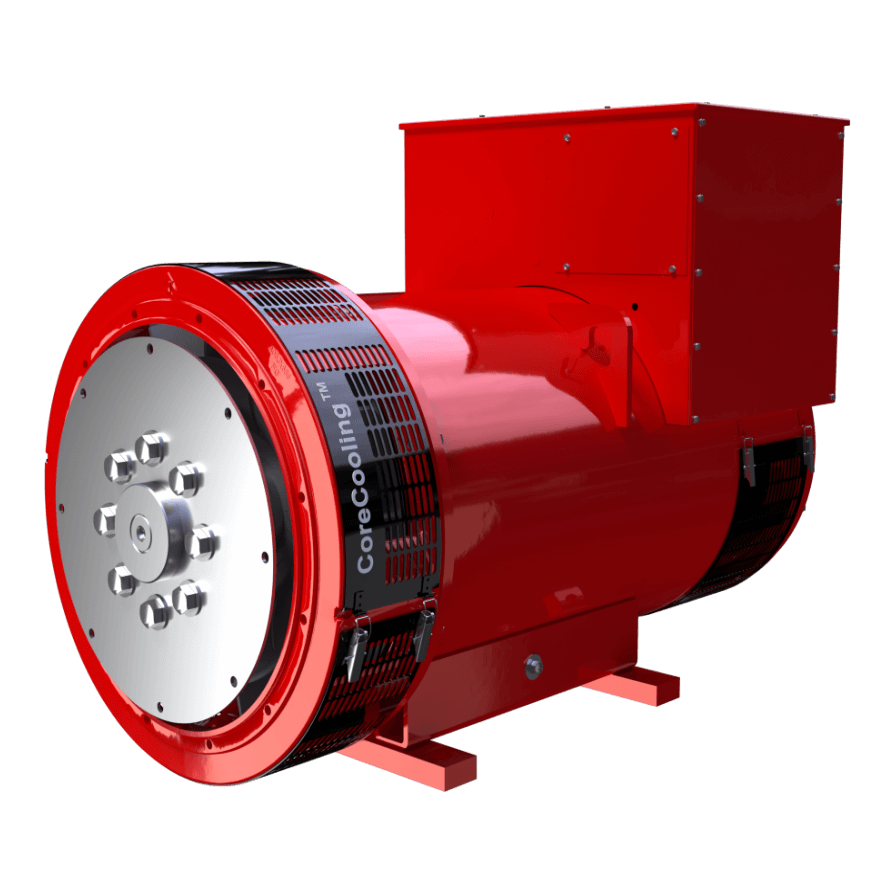

The STAMFORD S4 is part of the STAMFORD S-Range with a voltage output of 380-690V. This low voltage alternator features the dedicated range of products with optimised power density. Due to the optimised power density design a new core length for 450kVA has been added to the product line.
The dedicated range has enhanced thermal management through the CoreCooling™ high efficiency air flow system. The STAMFORD S4 dedicated alternator can achieve improved thermal performance alongside increased power density.
Product Specifications
- 50Hz Continuous (kVA): 450
- 60Hz Continuous (kVA): 560
- Voltage Designation: Low
- Voltage Range: 380-690
- AVR: AS440
- Poles: 4
- Winding Pitch: 2/3
- Ingress Protection: IP23
- Material Insulation Class: H
- Excitation System: Self-Exciting
Product Options
- AVR Options: DECS150 / DM110 / MX321 with PMG / MX341 with PMG / No AVR
- Options: 0, 2, 0.5 SAE Adaptor / Adaptor Foot Flexible Foot / Double Bearing / IP23 Air Filters / Thermistors / Winding RTDs / 1 Phase re-connectable / 3 Phase Sensing / Anti-Condensation Heaters / PMG Excitation
