Description

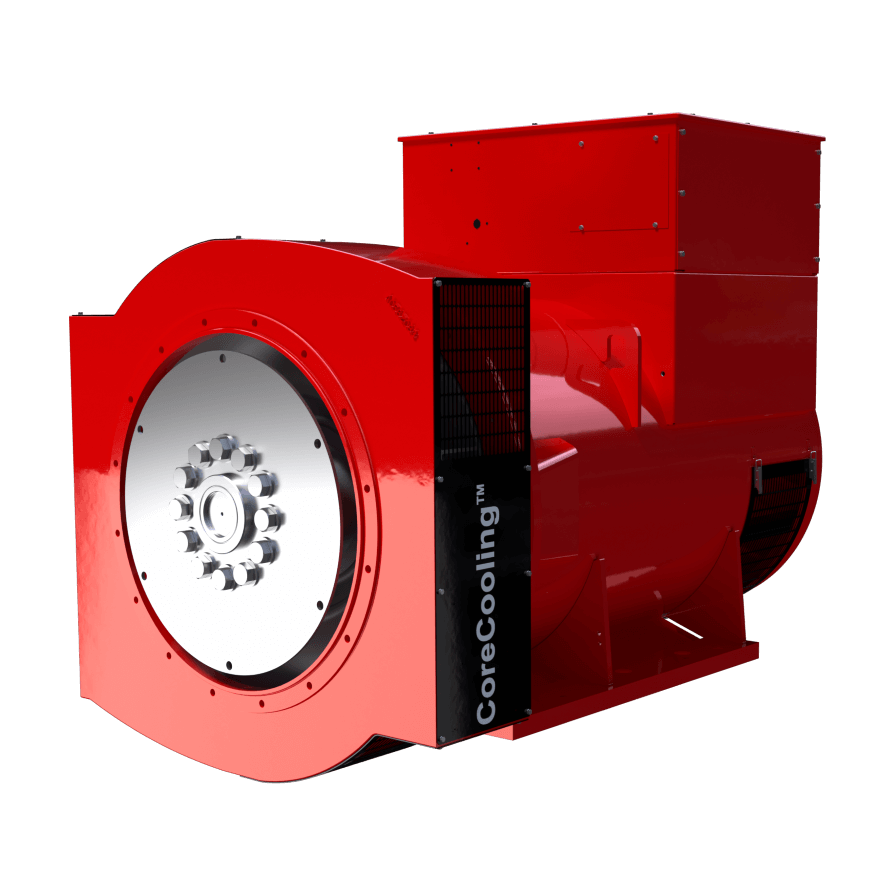

The STAMFORD S6 is part of the STAMFORD S-Range with a voltage output of 380-690V. This low voltage alternator features products with new design with optimised power density cores.
The S6 range of products has enhanced thermal management through the CoreCooling™ high efficiency air flow system. The STAMFORD S6 dedicated alternator can achieve improved thermal performance alongside increased power density. Power range from 810kVA to 1400kVA at 400V/50Hz and 1000kVA to 1695kVA at 480V/60Hz.
Product Specifications
- 50Hz Continuous (kVA): 1400
- 60Hz Continuous (kVA): 1695
- Voltage Designation: Low
- Voltage Range: 380-690
- AVR: MX321 with PMG
- Poles: 4
- Winding Pitch: 2/3
- Ingress Protection: IP44
- Material Insulation Class: H
- Excitation System: PMG
Product Options
- AVR Options: DECS150 / MX341 with PMG / No AVR
- Options: Double Bearing Arrangement / IP23 Air Filters / IP44 Air Filters / Thermistors / Winding RTDs / 3 Phase re-connectable / Anti-Condensation Heaters
