Description

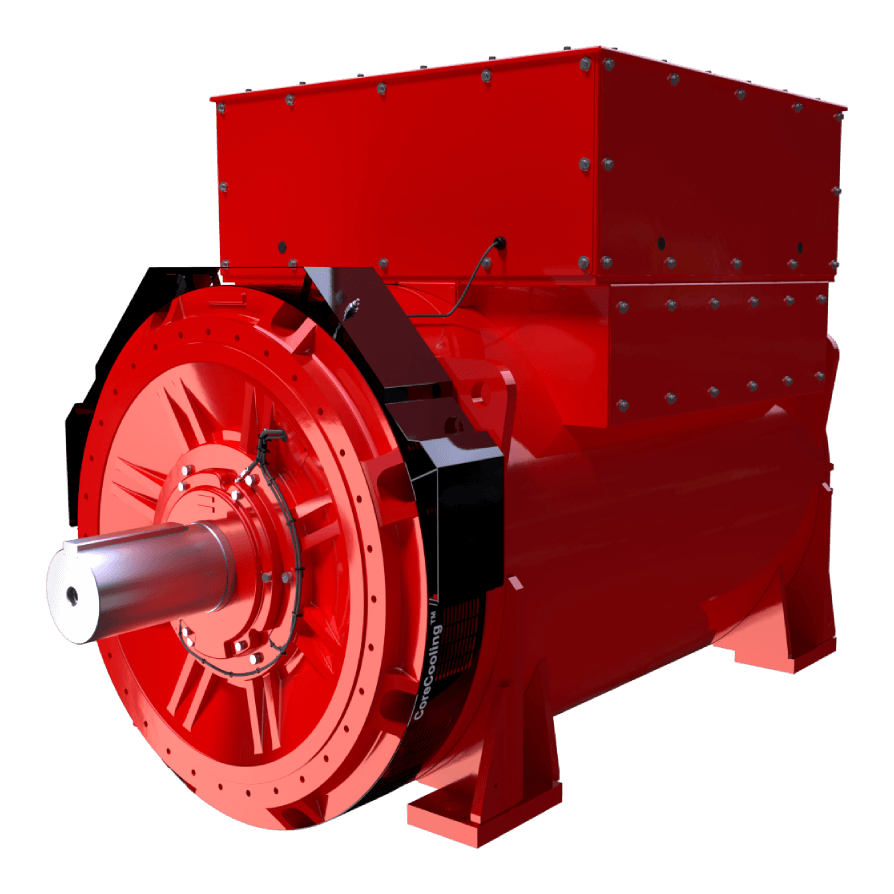

The STAMFORD S9 is part of the STAMFORD S-Range with a voltage output of 380 to 13800V. This low, medium and high voltage alternator features product with new design with an optimised power density cores.
The S9 range of products has enhanced thermal management through the CoreCooling™ high efficiency air flow system. The STAMFORD S9 dedicated alternator achieves improved thermal performance and increased power density, through a class H insulation system.
S9 Low Voltage: Power range from 2430-4400 kVA at 50Hz (different voltages) and 2132-4220 kVA at 60Hz (different voltages).
S9 Medium and High Voltage: Power range from 2150-4500 kVA at 50Hz (different voltages) and 2400-5600kVA at 60Hz (different voltages).
Product Specifications
- 50Hz Continuous (kVA): 4500
- 60Hz Continuous (kVA): 5000
- Voltage Designation: Low/Medium/High
- Voltage Range: 380-13800
- AVR: DM110
- Poles: 4
- Winding Pitch: 2/3 (LV, MV, HV), 5/6 (MV, HV)
- Ingress Protection: IP23
- Material Insulation Class: H
- Excitation System: PMG
Product Options
- AVR Options: DECS100 / DECS150 / UNITROL 1010
- Options: Air Inlet Cover / Air Inlet Filter / Bearing RTD (Each Bearing) / Diode Failure Detector / Excitation Loss Module / Quadrature Droop Kit / Anti-Condensation Heaters
