Description

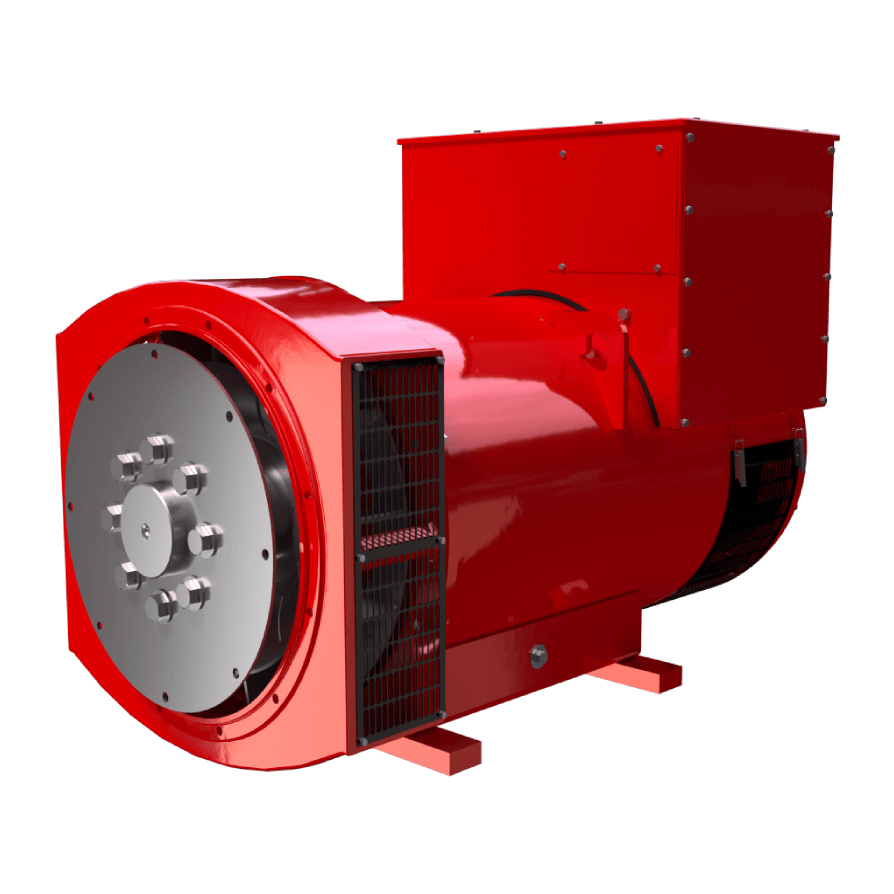

The STAMFORD HC4 has a maximum continuous rating of 500kVA at 60Hz (400kVA at 50Hz) and a voltage output of 380-690 volts.
The STAMFORD HC4 alternator is a high efficiency product which is predominantly used for grid code applications, marine naval ships, shopping malls and industrial buildings and critical standby power applications.
Product Specifications
- 50Hz Continuous (kVA): 400
- 60Hz Continuous (kVA): 500
- Voltage Designation: Low
- Voltage Range: 380-690
- AVR: AS440
- Poles: 4
- Winding Pitch: 2/3
- Ingress Protection: IP23
- Material Insulation Class: H
- Excitation System: Self-Exciting
Product Options
- AVR Options: DECS150 / DM110 with PMG / MX321 with PMG / MX341 with PMG / MX342 with PMG / No AVR
- Options: Double Bearing Arrangement / IP23 Air Filters / Anti-Condensation Heaters
